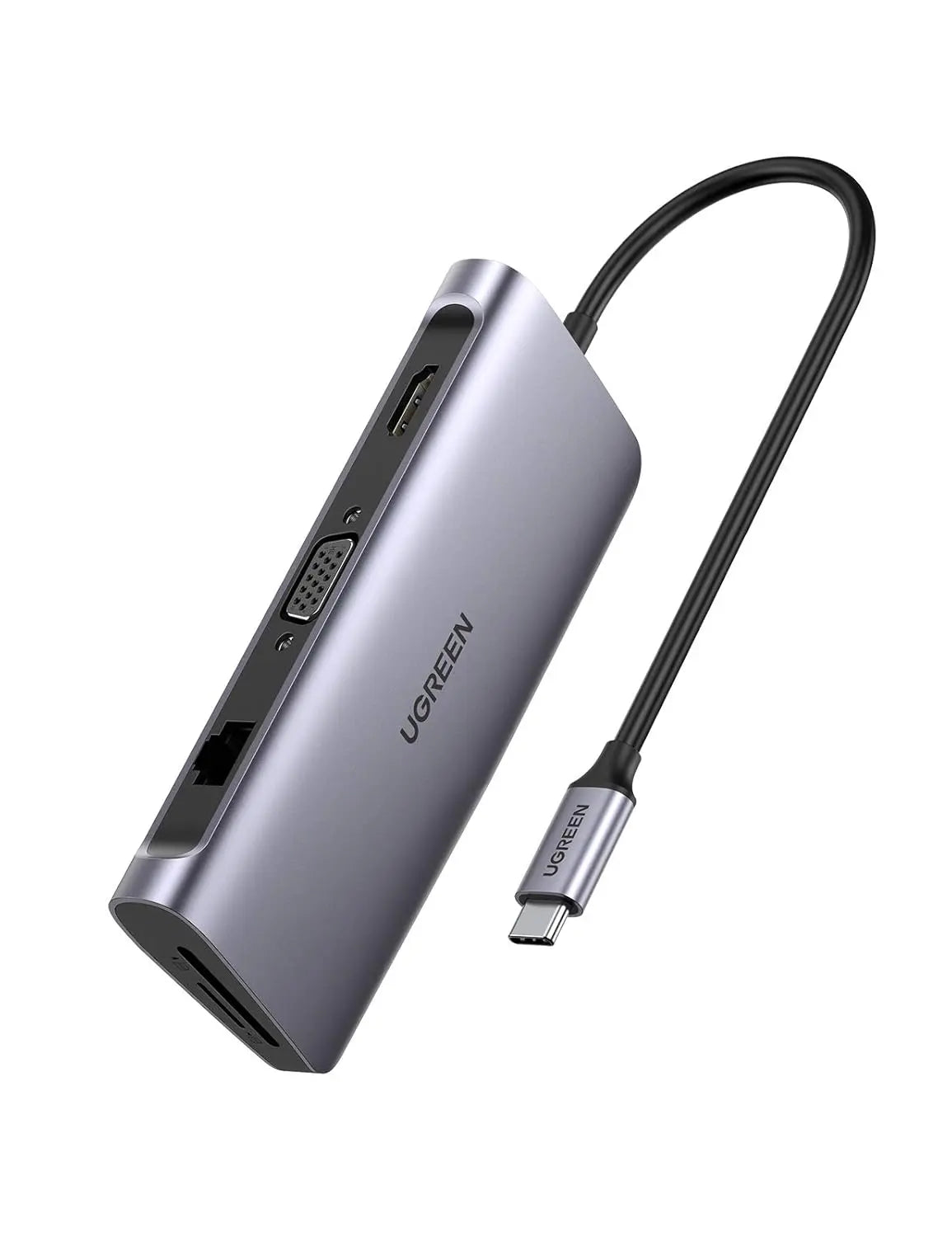

The UGREEN 9-in-1 USB-C Hub (40873) gives your laptop a 4K@30Hz HDMI output and a 1080p VGA output for older projectors, Gigabit Ethernet, three USB 3.0 ports, SD and microSD readers and a 100W PD charging input.
4K@30HzHDMI
1080pVGA
1GbpsEthernet
100WPD input
UGREEN 9-in-1 USB-C Hub with HDMI and VGA key features
4K HDMI Up to 4K@30Hz.
VGA Up to 1080p@60Hz for projectors.
Gigabit Ethernet Stable wired network.
Three USB 3.0 Up to 5Gbps, shared.
SD + microSD Camera and phone cards.
100W PD input Charge the laptop through the hub.
UGREEN 9-in-1 USB-C Hub with HDMI and VGA highlights

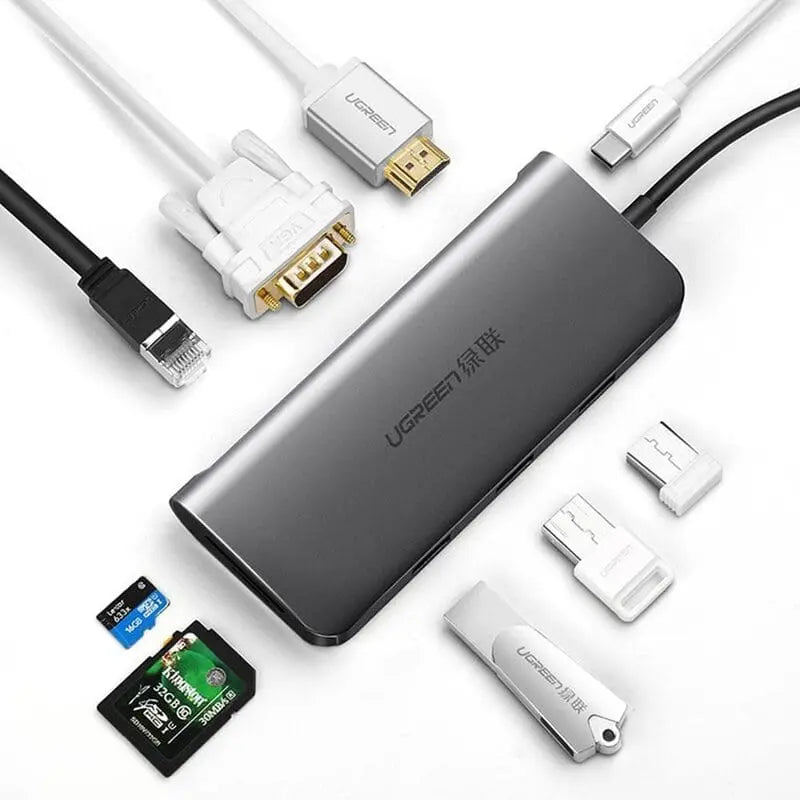

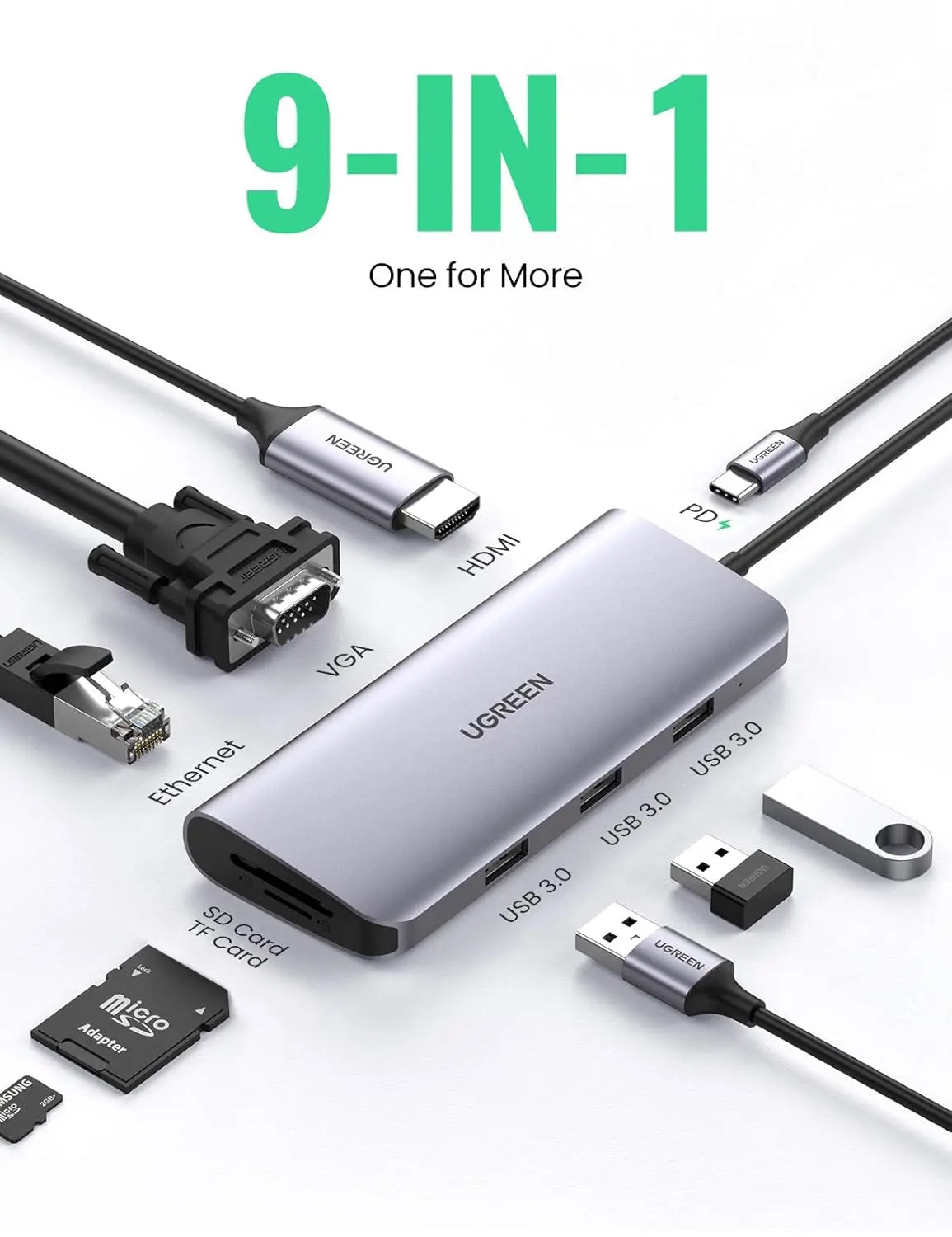

9-in-1
HDMI, VGA, LAN, three USB 3.0, SD, TF and PD.
4K HDMI display
Presentations and movies on a big screen.
1000Mbps Ethernet
Faster than Wi-Fi for calls and downloads.
100W PD charging
Keep your laptop powered.
Which port for what
Usage scenarios for the UGREEN 9-in-1 USB-C Hub with HDMI and VGA
Meeting rooms
HDMI or VGA projectors.
Runs
Approx.
HDMI
4K@30Hz
VGA
1080p@60Hz
Use: HDMI and VGA cannot be used at the same time.
Office desk
LAN, keyboard, mouse and drive.
Runs
Approx.
Ethernet
Gigabit
USB
3 × USB 3.0
Use: Connect only one external hard drive at a time.
Photos and files
Import SD and microSD cards.
Runs
Approx.
Cards
SD + TF
USB
5Gbps
Use: Eject before removing.
UGREEN 9-in-1 USB-C Hub with HDMI and VGA compatibility
Device
Status
What to expect
MacBook, Dell XPS and USB-C laptops with DP Alt Mode
Compatible
Full functions
USB-C ports without video
Partly
No HDMI/VGA
HDMI + VGA together
Not supported
One display at a time
Works with
HDMI or VGA displays
Wired Gigabit networking
SD and microSD cards
Won't work with
HDMI and VGA at the same time
4K@60Hz
Audio jack
UGREEN 40873 9-in-1 USB-C Hub specifications
Model
UGREEN 40873
Host
USB-C
HDMI
Up to 4K@30Hz
VGA
Up to 1080p@60Hz
Displays
One at a time (HDMI or VGA)
Ethernet
Gigabit RJ45
USB-A
3 × USB 3.0, up to 5Gbps (shared)
Card readers
SD + TF/microSD
PD input
Up to 100W (charging only)
Audio
Not included
What's in the box
UGREEN 9-in-1 USB-C hub (40873)
Charger and cables not included.
Good to know
One display at a time. HDMI and VGA cannot be used together. Connect only one external hard drive at a time.
HDMI and VGA need DisplayPort Alt Mode on the host.
UGREEN 9-in-1 USB-C Hub with HDMI and VGA FAQs
Can I use HDMI and VGA together?
No, one at a time.
What is the HDMI resolution?
Up to 4K@30Hz.
Does it have Ethernet?
Yes, Gigabit.
Can I charge through it?
Yes, up to 100W PD input.
How many hard drives can I connect?
One external hard drive at a time.
Does it have an audio jack?
No.
Genuine UGREEN, imported and sold by Sophus Technosol Pvt Ltd, the authorised national distributor. GST invoice with every order. 2-year India warranty.
The UGREEN 9-in-1 USB-C Hub (40873) gives your laptop a 4K@30Hz HDMI output and a 1080p VGA output for older projectors, Gigabit Ethernet, three USB 3.0 ports, SD and microSD readers and a 100W PD charging input.
4K@30HzHDMI
1080pVGA
1GbpsEthernet
100WPD input
UGREEN 9-in-1 USB-C Hub with HDMI and VGA key features
4K HDMI Up to 4K@30Hz.
VGA Up to 1080p@60Hz for projectors.
Gigabit Ethernet Stable wired network.
Three USB 3.0 Up to 5Gbps, shared.
SD + microSD Camera and phone cards.
100W PD input Charge the laptop through the hub.
UGREEN 9-in-1 USB-C Hub with HDMI and VGA highlights
9-in-1
HDMI, VGA, LAN, three USB 3.0, SD, TF and PD.
4K HDMI display
Presentations and movies on a big screen.
1000Mbps Ethernet
Faster than Wi-Fi for calls and downloads.
100W PD charging
Keep your laptop powered.
Which port for what
Usage scenarios for the UGREEN 9-in-1 USB-C Hub with HDMI and VGA
Meeting rooms
HDMI or VGA projectors.
Runs
Approx.
HDMI
4K@30Hz
VGA
1080p@60Hz
Use: HDMI and VGA cannot be used at the same time.
Office desk
LAN, keyboard, mouse and drive.
Runs
Approx.
Ethernet
Gigabit
USB
3 × USB 3.0
Use: Connect only one external hard drive at a time.
Photos and files
Import SD and microSD cards.
Runs
Approx.
Cards
SD + TF
USB
5Gbps
Use: Eject before removing.
UGREEN 9-in-1 USB-C Hub with HDMI and VGA compatibility
Device
Status
What to expect
MacBook, Dell XPS and USB-C laptops with DP Alt Mode
Compatible
Full functions
USB-C ports without video
Partly
No HDMI/VGA
HDMI + VGA together
Not supported
One display at a time
Works with
HDMI or VGA displays
Wired Gigabit networking
SD and microSD cards
Won't work with
HDMI and VGA at the same time
4K@60Hz
Audio jack
UGREEN 40873 9-in-1 USB-C Hub specifications
Model
UGREEN 40873
Host
USB-C
HDMI
Up to 4K@30Hz
VGA
Up to 1080p@60Hz
Displays
One at a time (HDMI or VGA)
Ethernet
Gigabit RJ45
USB-A
3 × USB 3.0, up to 5Gbps (shared)
Card readers
SD + TF/microSD
PD input
Up to 100W (charging only)
Audio
Not included
What's in the box
UGREEN 9-in-1 USB-C hub (40873)
Charger and cables not included.
Good to know
One display at a time. HDMI and VGA cannot be used together. Connect only one external hard drive at a time.
HDMI and VGA need DisplayPort Alt Mode on the host.
UGREEN 9-in-1 USB-C Hub with HDMI and VGA FAQs
Can I use HDMI and VGA together?
No, one at a time.
What is the HDMI resolution?
Up to 4K@30Hz.
Does it have Ethernet?
Yes, Gigabit.
Can I charge through it?
Yes, up to 100W PD input.
How many hard drives can I connect?
One external hard drive at a time.
Does it have an audio jack?
No.
Genuine UGREEN, imported and sold by Sophus Technosol Pvt Ltd, the authorised national distributor. GST invoice with every order. 2-year India warranty.
GST Invoice available, just mail back with details to order confirmation mail.
Buy direct from official UGREEN India
GST Invoice, Warranty, authenticity, faster support
Your cart
UGREEN
UGREEN 9-in-1 USB Type C Docking Station 4K HDMI VGA Gigabit Ethernet PD Charging 3 USB 3.0 SD Card MacBook Dell XPS (40873)
Sale priceRs. 6,489.00
Regular priceRs. 13,330.00
Unit price
Product introduction
Overview

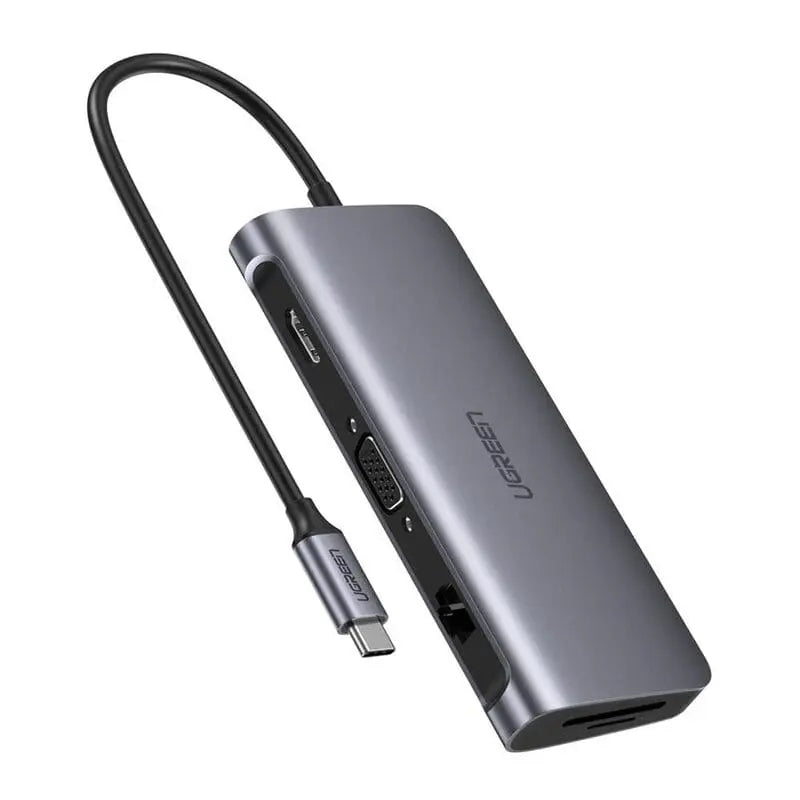

UGREEN 40873 is a nine-function USB-C dock for connecting a modern or legacy display alongside wired networking, USB peripherals, memory cards and pass-through laptop power. Its display connectors are alternatives: use HDMI or VGA, because this model information states that they cannot operate simultaneously.
Up to 4K 30HzHDMI
Up to 1080p 60HzVGA
Gigabit RJ45Ethernet
3 × USB-A 3.0USB data
Features
What it does well.
Key features
At a glance
Nine functions with mutually exclusive display outputs
Port-by-port clarity
HDMI output. Up to 4K 30Hz for a compatible monitor, television or projector. It cannot be used together with VGA on this model.
VGA output. Up to 1080p 60Hz for a legacy monitor or projector. Disconnect HDMI before relying on VGA.
Data and network. Gigabit Ethernet, three USB-A 3.0 ports, and SD plus TF/microSD card readers.
PD-IN. USB-C charging input up to 100W; it is not a downstream data or display port.
Select HDMI or VGA before you build the desk
Display choice
Use HDMI for a digital 4K30-capable display path or VGA for a legacy 1080p60 connection. this model does not support using both outputs simultaneously, so it is not a dual-monitor adapter.
If the screen remains blank, confirm the host USB-C port supports DisplayPort Alt Mode, select the correct display input, test a lower resolution and connect directly without an unverified switch or converter.
Disconnect one display type before using the other.
Use a cable rated for the chosen mode.
No audio connection is provided by the dock itself.
Network, cards and USB share one compact host link
Desk expansion
The RJ45 port can negotiate a Gigabit link with compatible network equipment and cabling. Internet speed can still be lower. USB drives and both card readers share host bandwidth; simultaneous transfers can reduce the speed of each operation.
the listing advises attaching only one external hard drive. Connect a suitable PD source before a high-draw workflow and keep the charger role separate from the PD-IN port’s lack of data.
Eject drives and cards before removal.
Use one external hard drive at a time.
Connect PD power before troubleshooting a high-load setup.
Use scenarios
Real-world applications
Choose this model when its connections and limits match the workflow below.
Modern HDMI desk. Connect one digital monitor, wired LAN, USB peripherals and cards while powering a compatible laptop.
Legacy VGA presentation. Attach an older projector or monitor at up to 1080p 60Hz after disconnecting HDMI.
Photo import. Read SD or TF media with a single external hard drive and wired network attached.
Travel adapter. Carry one dock for rooms that may provide either HDMI or VGA, while remembering the outputs are alternatives.
Setup and usability guidance
Practical connection order
A deliberate connection order makes capability checks and troubleshooting easier.
Confirm host USB-C DisplayPort Alt Mode and Power Delivery support.
Connect a suitable PD charger and cable to PD-IN if charging is required.
Attach the dock directly to the host USB-C port.
Choose either HDMI or VGA and connect only that display type.
Select the display input and choose a supported resolution.
Connect Ethernet, USB devices and cards one at a time.
Use no more than one external hard drive according to current guidance.
Eject drives and cards before disconnecting the dock.
Compatible devices and systems
Host and peripheral fit
Connector shape alone is not enough: the host port, operating system, cable, display and peripheral must support the required function.
USB-C laptops. MacBook, Windows laptop, Chromebook and similar hosts with USB data; display needs DisplayPort Alt Mode.
HDMI displays. Monitors, televisions and projectors up to the mutually supported 4K 30Hz mode.
VGA displays. Legacy monitors and projectors up to the mutually supported 1080p 60Hz mode.
Peripherals. Gigabit networks, USB-A data devices, SD and TF/microSD media within shared bandwidth and power.
What this product does
Function scope
Outputs one HDMI display up to 4K 30Hz or one VGA display up to 1080p 60Hz.
Adds Gigabit Ethernet to a compatible USB-C host.
Adds three USB-A data ports plus SD and TF/microSD readers.
Accepts up to 100W through PD-IN for compatible host pass-through charging.
What this product does not do
Boundaries that prevent a mismatch
It does not operate HDMI and VGA simultaneously.
It does not create a dual-monitor workstation.
It does not output video from a USB-C host that lacks DisplayPort Alt Mode.
It does not transfer data through PD-IN.
It does not add a 3.5mm audio connection.
What to do
Recommended practice
Choose HDMI or VGA before routing display cables.
Verify host video support.
Use a suitable PD charger and rated cable.
Use one external hard drive at a time.
Eject removable media before removal.
What not to do
Avoid common mistakes
Do not connect HDMI and VGA together.
Do not expect 4K 60Hz from the HDMI output.
Do not use PD-IN as a data port.
Do not attach several bus-powered hard drives.
Do not advertise an audio port that is not present.
Warnings and limitations
Read before use
Check before connecting or ordering.
Warning / limitation 1. The display output will remain blank if the host USB-C port lacks video capability.
Warning / limitation 2. Using both HDMI and VGA is not supported on this model.
Warning / limitation 3. Several storage transfers share bandwidth and available power.
Warning / limitation 4. A 1Gbps Ethernet link does not guarantee 1Gbps internet throughput.
Warning / limitation 5. Stop use if the attached lead or enclosure is damaged, wet, unusually hot or unstable.
HDMI and VGA cannot be used simultaneously on SKU 40873.
The host USB-C port must support DisplayPort Alt Mode for either display output.
HDMI is up to 4K 30Hz; VGA is up to 1080p 60Hz.
PD-IN is charging-only and requires a compatible charger and cable.
the listing recommends only one external hard drive.
This model has no 3.5mm audio port.
Network and data rates are interface maxima and depend on the complete system.
Specifications
At a glance.
Brand / SKU
UGREEN 40873
Product type
9-in-1 USB-C docking station
HDMI
Up to 4K 30Hz
VGA
Up to 1080p 60Hz
Display concurrency
HDMI and VGA cannot be used simultaneously
Ethernet
Gigabit RJ45, up to 1000Mbps link rate
USB data
3 × USB-A 3.0, up to 5Gbps shared
Card readers
SD and TF/microSD
PD input
USB-C up to 100W; charging-only
External hard-drive guidance
Connect only one as stated in this product material
Audio
No 3.5mm audio port
Host display requirement
USB-C DisplayPort Alt Mode
In the box
1 × UGREEN 40873 nine-function USB-C docking station with attached host connection.
Model-specific data
In-box information
PD charger, charging cable, HDMI cable, VGA cable, Ethernet cable, memory cards and USB peripherals are not included.
FAQs
Questions buyers ask.
Can HDMI and VGA work together on UGREEN 40873?
No. product information states that HDMI and VGA cannot be used simultaneously.
Is this a dual-monitor dock?
No. Choose either HDMI or VGA for one active display output.
What is the HDMI maximum?
HDMI is listed up to 3840 × 2160 at 30Hz in a compatible chain.
What is the VGA maximum?
VGA is listed up to 1920 × 1080 at 60Hz.
Will every USB-C laptop output video?
No. The host port must support DisplayPort Alt Mode.
Can the PD-IN port transfer data?
No. It is a charging input only.
Is a 100W charger included?
A PD charger and charging cable are not confirmed in the package information.
Can I connect two external hard drives?
the listing recommends connecting only one external hard drive.
Does it have Gigabit Ethernet?
Yes. The RJ45 port can negotiate up to a 1000Mbps link with compatible network equipment and cable.
Can SD and TF cards be used?
Yes. The dock includes both reader types, subject to card and operating-system support.
Does it include a headphone jack?
No. This model does not include a 3.5mm audio port.
